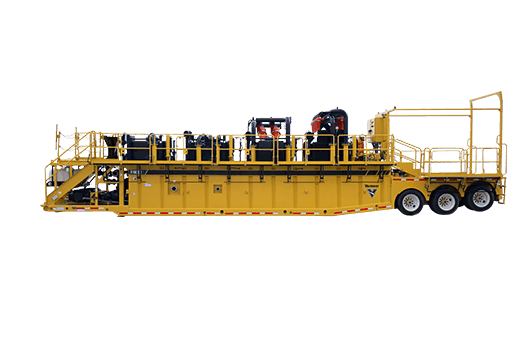

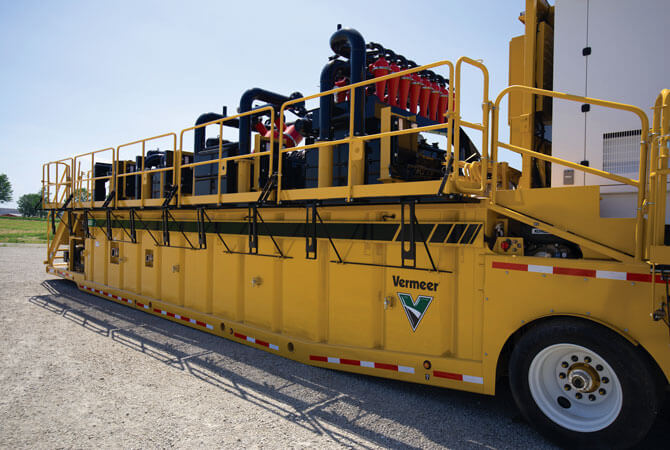

R600T Reclaimer
- Designed for large-scale pipeline projects
- Cleaning system can process over 1,100 gpm (4,163.9 L/min)
- Requires less drilling fluid and fresh water
- Standardized pumps
General
| Manufacturer | Vermeer |
| Model | R600T Reclaimer |
| Category | Fluid Management, Pipeline |
| Price | Request a Quote |
| Year | 2024 |
General Dimensions and Weights
| Weight | 53940lbs (24466.8kg) |
| Gross Vehicle Weight Rating (GVWR) | 65500lbs (29710.3kg) |
| Length | 54.2ft (16.5m) |
| Width | 8.4ft (2.6m) |
| Height | 13.5ft (4.1m) |
Frame
| Type | Triple axle trailer |
| Suspension | Air-ride |
| Axles | 10-bolt, hub-piloted, ABS-ready |
| Certifications | DOT lighting and braking |
Tank Capacities
| Maximum Capacity | 7729gal (29257.4L) |
| Number of Tanks | 3 |
| Scalped tank capacity | 3016gal (11416.8L) |
| Desander tank | 1934gal (7321L) |
| Clean/Mix Tank Capacity | 2779gal (10519.7L) |
Cleaning System
| Shaker Type | Linear |

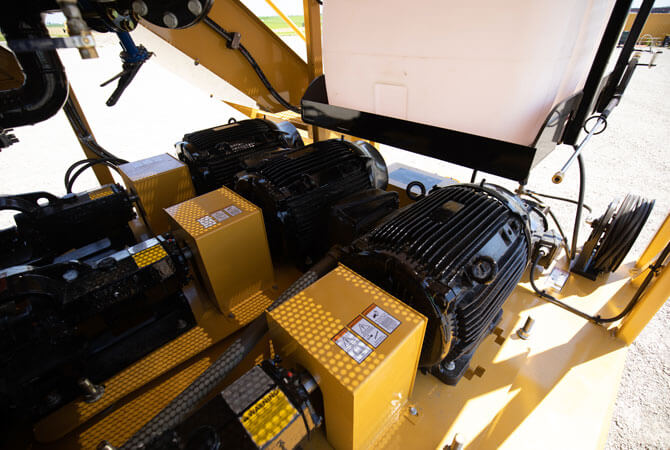

| Number of Shakers | 4 (2 motors per shaker) |
| Shaker Bed Area - each | 25.8 sq-ft (2.4 sq-m) |
| Number of Screens per Shaker | 3 |
| Screen Dimension | 24 in x 43.9 in (63.5 cm x 125.2 cm) |
| Cleaning Capacity (First Cut) | 600gpm (2271.2L/min) |
| Desander Quantity/Size | (2) 10-in (25.4-cm) cones |

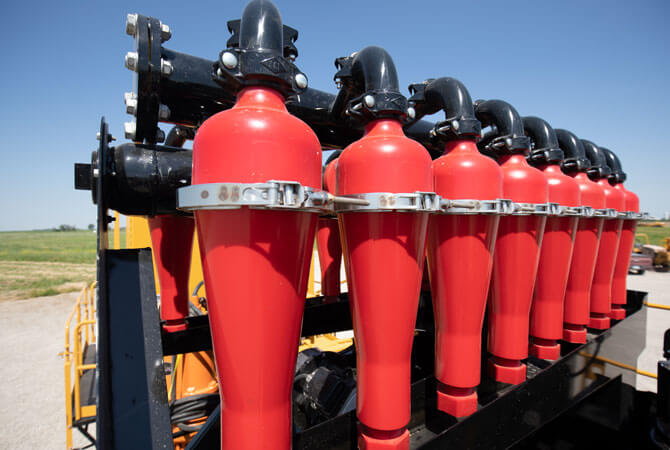

| Desilter Quantity/Size | (16) 5-in (12.7-cm) cones |
Companion Features
| Genset | 335.3 hp (250 kW); 3-phase 480 V |
Features
| Agitator System | 3 hp (2.2 kW), 3-phase 60 Hz, 460 V |
| Ancillary Electrical System | 120-V circuit for accessory equipment (heaters, tools, etc.) |
| Working lights | 3 LED - 2,750 lm each |
